CEVARVS-X1 , Ultra-Mini Palm size Rugged Edge Compute

CEVARVS-X1 , Ultra-Mini Palm size Rugged Edge Compute

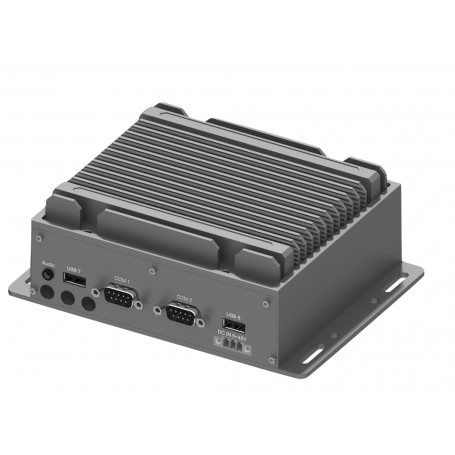

CEVA RVS-X1, Ultra-Mini Palm-Sized Fanless Rugged Edge Computer with 8 USB / 2 M12 LAN and Intel® 13th/12th  Core™ Processor

  • Supports Intel® 13th/ 12th-Gen Core™ 15W CPU

  • 2x M12 LAN(1x 2.5GbE, 1x GbE)

  • 1x  RS232/422/485, 1x RS232

  • 8x USB(4x USB3.2, 2x USB3.0, 2x USB 2.0) , option for USB Power on/off control

  • 1x Mic In/Line Out

  • 2x Displays (1x HDMI , 1x DP)

  • 2x M.2 2242 SATA III for SSD (1x share with M.2 3052 slot )

  • 1x M.2 2242/3052 B key with SIM slot, support 4G/5G

  • 1x Full Size Mini-PCIe with SIM slot, support 4G/5G

  • 1x M.2 Key E Type 2230 for WIFI/BT/GPS

  • 6~48V Wide DC Input Voltage

  • -40°C ~ 70°C wide operating temperature

  • Ignition/Remote Power Switch Control

CEVA RugCon

0,00 €
Impuestos incluidos

ENBIK’s RugCon-RVS-X1 is an ultra-mini palm-sized rugged edge computer, only 145 x 125 x 60 mm, which is very suitable for space-limited installation and deployment, and perfectly combining a sturdy waterproof shell, low power consumption, high-performance low power intel® 13th/ 12th core™ i7/i5/i3 processor and accurate I/O. Design. RVS-X1 provides a wide range of I/O ports, including 2 M12 LANs, 1 RS232/422/485, 1 RS232, 8 USBs and multiple M.2 internal expansion slots for 5G/4G/WIFI/GPS. RVS-X1 also has 2 M.2 2242 SATA III, which can install two solid-state drives at the same time.

RVS-X1 supports MXM expansion interface, which can flexibly integrate ENBIK’s MXM GPU AI computing box to improve edge AI deep learning and reasoning capabilities. While driving high-performance computing with low-power consumption configuration, it helps to reduce power consumption. With high computing power, high stability and high reliability, it helps customers achieve deployment-intensive artificial intelligence reasoning applications and maintain high cost-effectiveness.

 Application

ENBIK RugCon-RVS-X1 is suitable for edge computing, IoT, machine vision, AGV/AMR, In-Vehicle systems, rail transit, robot control , drone and automation control, as well as various harsh and extreme edge environments with limited installation space and limited power supply.


IO Interface
USB

8

 4x USB 3.2 Gen2x1(10Gbps)/USB 2.0,

4x USB 2.0
Display

2

 1x HDMI , 1x DP
Audio

1

 1x Mic-In , 1x Line Out
LAN

2

 1x M12 2.5 GbE with TSN support ,  1x M12 GbE
COM

2

 1x RS232/422/485,1x RS232
CAN

0

 N/A
DIO

0

N/A



Storage
M.2

2

 2x M.2 2242 M key SATAIII
2.5”

0

 N/A



On Board Expansion
Mini-PCIe

M.2 Expansion

3

 2x Full Size Mini-PCIe with SIM supporting 4G/5G/LTE

1x M.2 Key E Type 2230 for BT/GPS
M.2 2280 M key

0

 N/A
Mechanical
Mechanical Dimension : 145(w) x 125(D) x 60(H) mm

Weight : 1.2 kg

Mounting : Wall Mount



Mechanical
AI BOX Support installing MFSA, this is AI BOX which equipped with  MXM GPU AI Card



Environmental
Operating Temp. -25°C ~ 70°C

-40°C ~ 85°C ( Extended)
Storage Temp. -40°C ~ 85°C
Humidity 0%~90% , non-condensing
Vibration EN 50155:2017/ IEC 61373, Category I, Class B – Body mounted

MIL-STD-810H, Method 514.8, Category 4
Shock EN 50155:2017/ IEC 61373, Category I, Class B – Body mounted

MIL-STD-810H, Method 516.8, Procedure I
EMC CE/FCC Class A



Power
1x Power Button

1x 3-pin pluggable terminal block for 6~48V DC Input ,

1x 4-pin pluggable terminal block forIgnition control and Remote Control



Warranty
3 Year Warranty

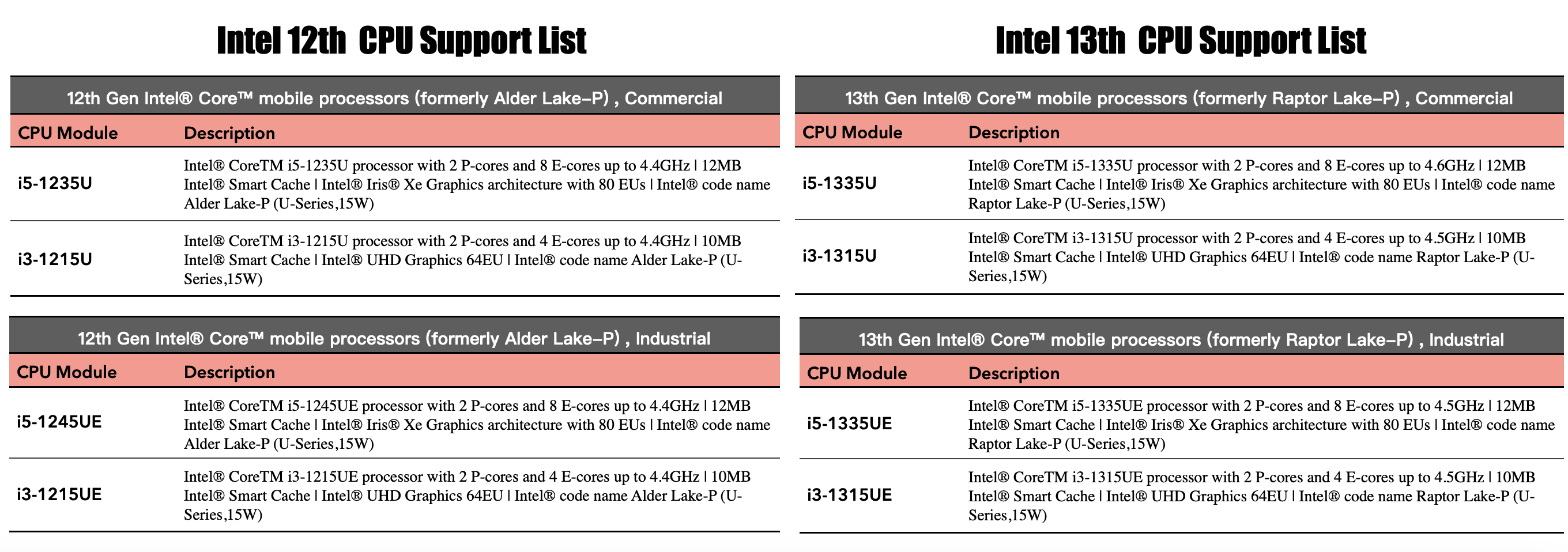

Intel® 14th (15W) Intel® 13th (15W) Intel® 12th (15W)
CPU Ultra 7-155U Ultra 7-125U i7-1365URE i7-1365UE i5-1335UE i3-1315UE i7-1365U i7-1355U i5-1335U i3-1315U i7-1265U i7-1255U i5-1235U i3-1215U
DDR DDR5 (Max. 96 GB) DDR5 ( Max. 64 GB)
Cores / Threads 12 C / 14 T 12 C / 14 T 10 C / 12 T 10 C / 12 T 10 C / 12 T 6 C / 8 T 10 C / 12 T 10 C / 12 T 10 C / 12 T 6 C / 8 T 10 C / 12 T 10 C / 12 T 10 C / 12 T 6 C / 8 T
P Turbo up to 4.8GHz up to 4.3GHz up to 4.9GHz up to 4.9GHz up to 4.5GHz up to 4.5GHz up to 5.2GHz up to 5GHz up to 4.6GHz up to 4.5GHz up to 4.8GHz up to 4.7GHz up to 4.4GHz up to 4.4GHz
