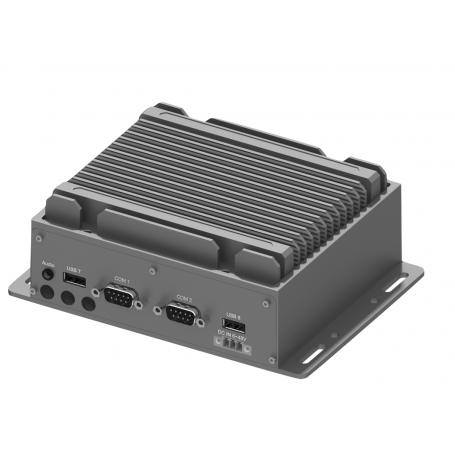

CEVA RVS-T2, Ultra-Mini Palm size Rugged Edge Computer
CEVA RVS-T2, Ultra-Mini Palm-Sized Fanless Rugged Edge Computer with 8 USB / 3x 2.5GbE LAN and Intel® 13th/12th Core™ Processor
- Supports Intel® 13th/ 12th-Gen Core™ 15W CPU
- 3x RJ45 LAN (2.5Gb)
- 1x RS232/422/485, 1x RS232
- 6x USB(4x USB3.2, 2x USB 2.0)
- 1x Mic In/Line Out
- 2x Displays (1x HDMI , 1x DP)
- 2x M.2 2242 SATA III for SSD (1x share with M.2 3052 slot )
- 1x M.2 2242/3052 B key with SIM slot, support 4G/5G
- 1x Full Size Mini-PCIe with SIM slot, support 4G/5G
- 1x M.2 Key E Type 2230 for WIFI/BT/GPS
- 6~48V Wide DC Input Voltage
- -40°C ~ 70°C wide operating temperature
- Ignition/Remote Power Switch Control
CEVA’s RugCon-RVS-T2 is an ultra-mini palm-sized rugged edge computer, only 145 x 125 x 60 mm, which is very suitable for space-limited installation and deployment, and perfectly combining a sturdy waterproof shell, low power consumption, high-performance low power intel® 13th/ 12th core™ i7/i5/i3 processor and accurate I/O. Design. RVS-T2 provides a wide range of I/O ports, including 3 LANs, 1 RS232/422/485, 1 RS232, 6 USBs and multiple M.2 internal expansion slots for 5G/4G/WIFI/GPS. RVS-T2 also has 2 M.2 2242 SATA III, which can install two solid-state drives at the same time.
RVS-T1 supports MXM expansion interface, which can flexibly integrate CEVA’s MXM GPU AI computing box to improve edge AI deep learning and reasoning capabilities. While driving high-performance computing with low-power consumption configuration, it helps to reduce power consumption. With high computing power, high stability and high reliability, it helps customers achieve deployment-intensive artificial intelligence reasoning applications and maintain high cost-effectiveness.
Application
CEVA RugCon-RVS-T2 is suitable for edge computing, IoT, machine vision, AGV/AMR, In-Vehicle systems, rail transit, robot control , drone and automation control, as well as various harsh and extreme edge environments with limited installation space and limited power supply.
| IO Interface | ||
| USB |
6 |
6x USB ( 4x USB 3.2, 2x USB 2.0) |
| Display |
4 |
2x Display 1x Display Port, 4096*2304@60Hz 1x HDMI , 4096*2160@60Hz |
| Audio |
1 |
1x 3.5mm jack for Mic-In and Line-out |
| LAN |
3 |
3x 2.5 GbE |
| COM |
2 |
1x RS232/422/485,1x RS232 |
| CAN |
0 |
N/A |
| DIO |
0 |
N/A |
| Storage | ||
| M.2 |
2 |
2x M.2 2242 M key (SATA III SSD) , Support Raid 0/1 , (1x M.2 2242 share with M.2 3052) |
| On Board Expansion | ||
|
Internal Expansion |
3 |
1x M.2 2242/3052 M-B key with SIM slot, support 4G/5G 1x Full Size Mini-PCIe with SIM slot, support 4G/5G 1x M.2 Key E Type 2230 for WIFI/BT/GPS |
| Mechanical | ||
| Mechanical | Dimension : 145(w) x 125(D) x 60(H) mm
Weight : 1.1 kg Mounting : Wall Mount |
|
| Mechanical | ||
| AI BOX | Support installing MFSA, this is ENBIK AI BOX which equipped with MXM GPU AI Card | |
| Environmental | ||
|
Temperature |
Operating :Standard : -40°C~70 °C ( According to CPU) Storage Temperature : -40°C to 85°C |
|
| Storage Temp. | -40°C ~ 85°C | |
| Humidity |
Operating : 0~95%(non-condensing Storage : 10~90% |
|
|
Vibration / Shock |
Vibration test according to MIL-STD-810H, Method 514.8, Category 4 Shock test according to MIL-STD-810H, Method 516.8, Procedure I |
|
| EMC |
CE/FCC Class A , according to EN 55032 & EN 55035 , (E-Mark / EN50155 / EN45545-2 by request) |
|
| Power |
|
1x 3-pin pluggable terminal block for 6~48V DC Input 200V/1ms Surge Protection, Reverse-Voltage, Over-Voltage, Under-Voltage, Over-Current Protection 1x Power Button 1x 4-pin pluggable terminal block for Ignition/Remote |
| Warranty |
| 3 Year Warranty |

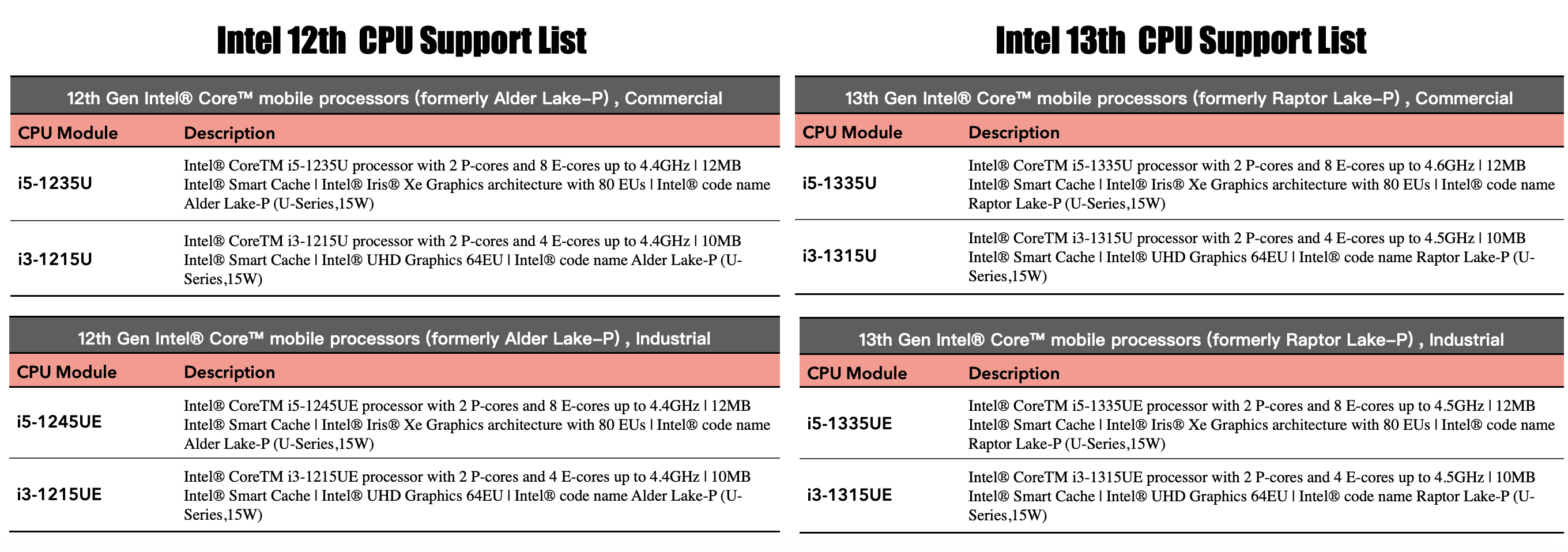

| Intel® 14th (15W) | Intel® 13th (15W) | Intel® 12th (15W) | ||||||||||||
| CPU | Ultra 7-155U | Ultra 7-125U | i7-1365URE | i7-1365UE | i5-1335UE | i3-1315UE | i7-1365U | i7-1355U | i5-1335U | i3-1315U | i7-1265U | i7-1255U | i5-1235U | i3-1215U |
| DDR | DDR5 (Max. 96 GB) | DDR5 ( Max. 64 GB) | ||||||||||||
| Cores / Threads | 12 C / 14 T | 12 C / 14 T | 10 C / 12 T | 10 C / 12 T | 10 C / 12 T | 6 C / 8 T | 10 C / 12 T | 10 C / 12 T | 10 C / 12 T | 6 C / 8 T | 10 C / 12 T | 10 C / 12 T | 10 C / 12 T | 6 C / 8 T |
| P Turbo | up to 4.8GHz | up to 4.3GHz | up to 4.9GHz | up to 4.9GHz | up to 4.5GHz | up to 4.5GHz | up to 5.2GHz | up to 5GHz | up to 4.6GHz | up to 4.5GHz | up to 4.8GHz | up to 4.7GHz | up to 4.4GHz | up to 4.4GHz |
