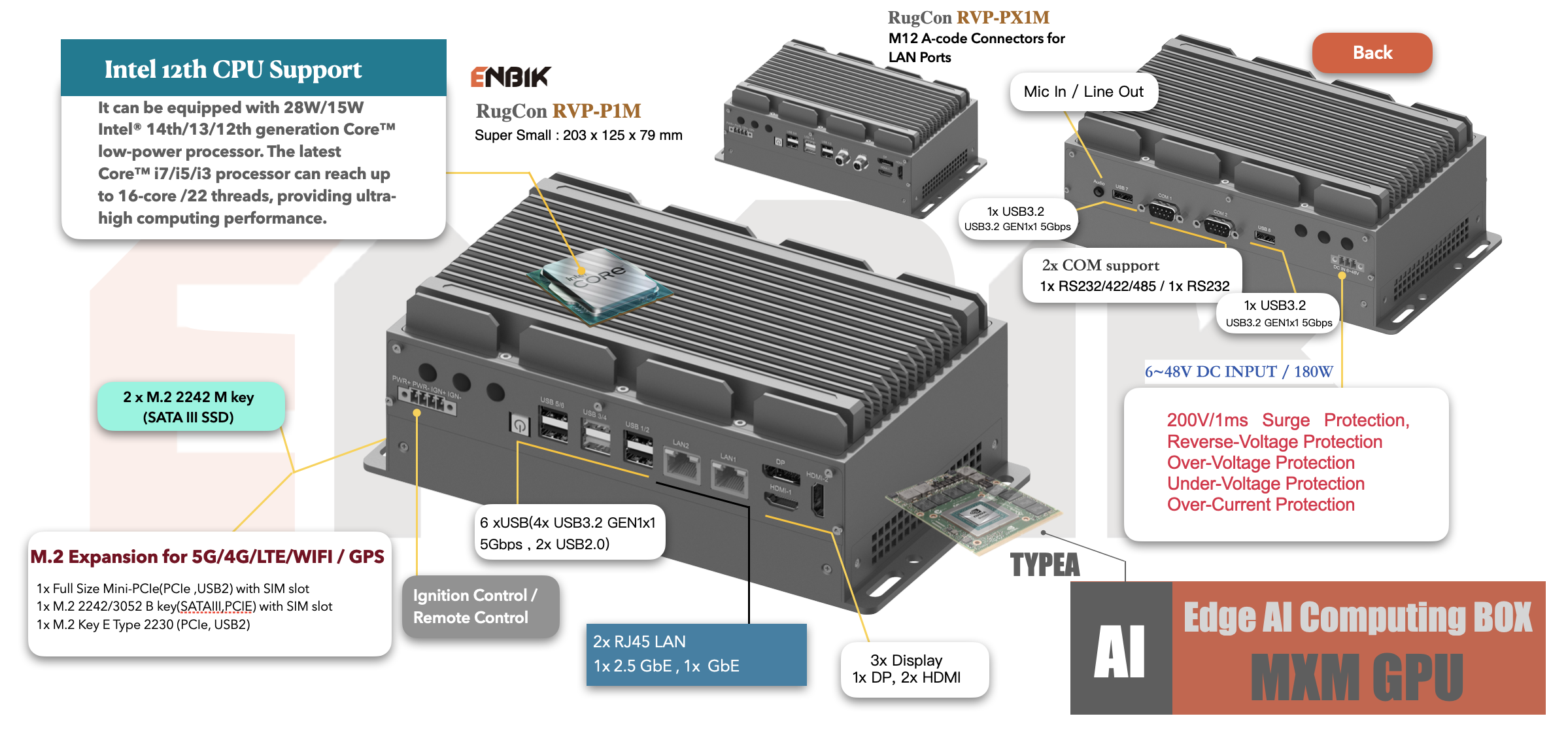

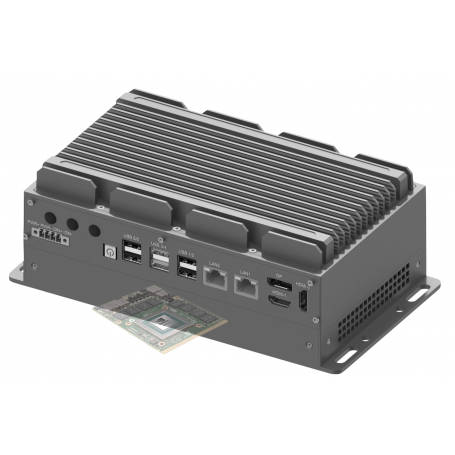

RVP-P1M, Mini-Small MXM GPU Wide Temperature Edge AI computer
ENBIK RVP-P1M, Mini-Small Wide Temperature Edge AI Computer with MXM GPU and Intel® 13th/12th Core™ Processors, supports NVIDIA GPU up to 321 TOPS
- Supports NVIDIA® Ampere/Ada Lovelace TYPE A MXM GPU Module, up to 65W TGP
- Supports NVIDIA RTX4070-8G, RTX4060-8G , RTX4050-6G, RTX2000-8G , A2000-8G
- Supports Intel® 13th/ 12th-Gen Core™ 15W/28W CPU
- 2x RJ45 LAN(1x 2.5GbE, 1x GbE)
- 1x RS232/422/485, 1x RS232
- 8x USB( 6x USB3.2 GEN1x1 5Gbps, 2x USB 2.0)
- 3x Displays (2x HDMI , 1x DP)
- 2x M.2 2242 SATA III for SSD (1x share with M.2 3052 slot ), Support Raid 0/1
- 1x M.2 2242/3052 B key with SIM slot, support 4G/5G
- 1x Full Size Mini-PCIe with SIM slot, support 4G/5G
- 1x M.2 Key E Type 2230 for WIFI/BT/GPS
- 6~48V Wide DC Input Voltage
- -40°C ~ 60°C wide operating temperature ( GPU 35W TGP, 194 TOPS)
- Ignition/Remote Power Switch Control
Introduction
ENBIK RugCon-RVP-P1M is a Mini-Small wide temperature edge AI computer equipping MXM GPU with with only 203 x 125 x 79 mm size ideal for space-constrained setups. RVP-P1M combines low power consumption Intel® 13th/ 12th generation Core™ 15W/28W processor with high-performance AI computing ability which can effectively solve the problem of edge artificial intelligence deployment with limited power supply. RVP-P1M offers a wide range of I/O ports including 2x LAN(2.5GbE/GbE), 1x RS232/422/485, 1x RS232, 8x USB, 3x displays and Multiple M.2 internal expansion slots for 5G/4G/WIFI/GPS. RVP-P1M also has 2x M.2 2242 SATA III slots, which can install two SSD at the same time.
What is exciting is that the RVP-P1M, can actually be compatible with industry-standard MXM GPUs and fully match NVIDIA RTX4070/RTX4060/RTX4050/RTX2000/A2000 or other MXM GPU Module up to 321 TOPS, for NVIDIA GPU which undoubtedly makes software developers more excited. The rich NVIDIA software ecosystem makes edge artificial intelligence deployment faster and easier to implement, effectively solves the installation and low-latency reasoning problems of various artificial intelligence models at the edge, and quickly makes various decisions and judgments at the edge. Modular GPU scalability ensures seamless upgrades to meet evolving application demands, the ENBIK’s RVP-P1M is definitely the best choice for edge deployment of demanding artificial intelligence tasks, limited space and limited power in various edge applications.
Application
ENBIK RugCon-RVP-P1M is suitable for edge computing,AIoT machine vision, AGV/AMR, In-Vehicle systems, rail transit, robot control and automation control, as well as various harsh and extreme edge environments with limited installation space and limited power supply.
Specifications
| IO Interface | ||
| USB |
8 |
6x USB 3.2 Gen2x1(10Gbps)/USB 2.0,
2x USB 2.0 |
| Display |
3 |
1x Display Port, 4096*2304@60Hz 2x HDMI , 4096*2160@30Hz |
| Audio |
1 |
1x 3.5mm jack for Mic-In and Line-out |
| LAN |
2 |
1x 2.5 GbE , 1x GbE , M12 A-coded connector for LAN Ports ( RVP- PX1M ) |
| COM |
2 |
1x RS232/422/485,1x RS232 |
| CAN |
0 |
N/A |
| DIO |
0 |
N/A |
| Storage | ||
| M.2 |
2 |
2x M.2 2242 M key (SATA III SSD) , Support Raid 0/1 , (1x M.2 2242 share with M.2 3052) |
| On Board Expansion | ||
|
Internal Expansion |
3 |
1x M.2 2242/3052 M-B key with SIM slot, support 4G/5G 1x Full Size Mini-PCIe with SIM slot, support 4G/5G 1x M.2 Key E Type 2230 for WIFI/BT/GPS |
|
MXM Expansion |
1 |
Support TYPE A : 82 x 70 mm MXM GPU Module |
| Mechanical | ||
| Mechanical | Dimension : 203(W) x 125(D) x 79(H) mm
Weight : 1.95 kg Mounting : Wall Mount |
|
| Environmental | ||
| Operating Temp. |
-40°C ~ 70 °C (According to CPU) , TGP 65W ( 45 °C ) , TGP 35W ( 60 °C ) |
|
| Storage Temp. | -40°C ~ 85°C | |
| Humidity |
Operating : 0~95%(non-condensing Storage : 10~90% |
|
| Vibration | MIL-STD-810H, Method 514.8, Category 4 | |
| Shock | MIL-STD-810H, Method 516.8, Procedure I | |
| EMC |
CE/FCC Class A , according to EN 55032 & EN 55035 , (E-Mark / EN50155 / EN45545-2 by request) |
|
| Power |
|
1x 3-pin pluggable terminal block for 6~48V DC Input 200V/1ms Surge Protection, Reverse-Voltage, Over-Voltage, Under-Voltage, Over-Current Protection 1x Power Button 1x 4-pin pluggable terminal block for Ignition/Remote power control |
| Warranty |
| 3 Year Warranty |
