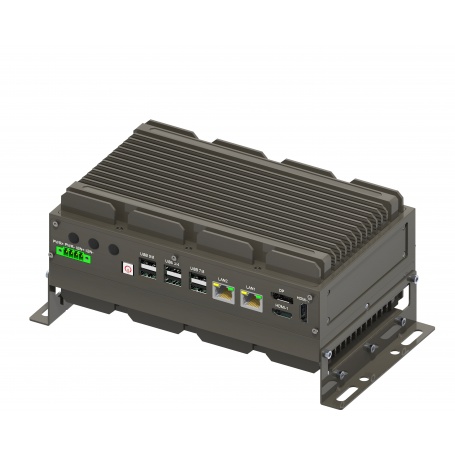

RugCon-RVP-D1 / RVP-DX1 (M12 LAN)

RugCon-RVP-D1 / RVP-DX1 (M12 LAN)

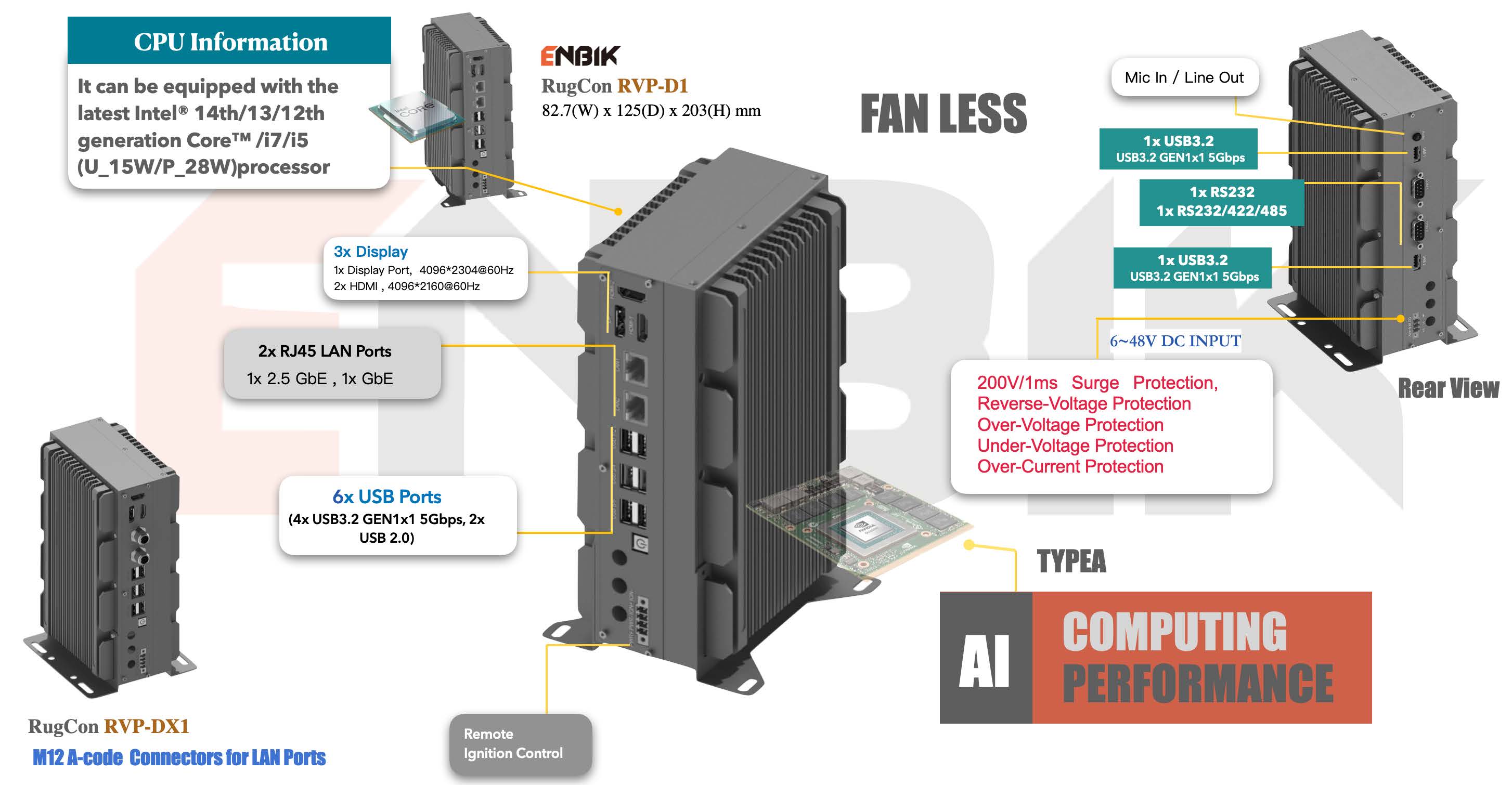

Supports NVIDIA® Ampere/Ada Lovelace TYPE A MXM GPU Module, up to 35W TGP Intel® 13th/12th-Gen Core™ i7/i5/i3 (15W, 28W)

  • 2x LAN Ports (RJ45 or M12 Connectors)
  • 3x Displays (2x HDMI, 1x DP)
  • 1x RS232/422/485, 1x RS232
  • 8x USB ( Support 6x USB3)
  • 1x Mic In/Line Out
  • 2x M.2 2242 M key (SATA III SSD) , support Raid 0/1
  • 1x M.2 2242/3052 B key with SIM slot, support 4G/5G
  • 1x Full Size Mini-PCIe with SIM slot, support 4G/5G
  • 1x M.2 Key E Type 2230 for WIFI/BT/GPS
  • 6~48V Wide DC In Voltage Input
  • Ignition Power switch Control
  • Remote Power on/off Control
0,00 €
Impuestos incluidos

SPECIFICATION

Product Name: RugCon-RVP-D1 / RVP-DX1 ( M12 LAN )

Generation: Intel® 13th/ 12th-Gen Core™ i7/i5/i3 ( U_15W, P_28W )

Memory: Max. Capacity : 64GB DDR5 with 2x SO-DIMM

Display:

  • 3x Display
  • 1x Display Port, 4096*2304@60Hz
  • 2x HDMI , 4096*2160@30Hz

LAN: 1x 2.5 GbE , 1x GbE , M12 A-coded connector for LAN Ports ( RVP-DX1 )

CAN: N//A

COM: 1x RS232/422/485, 1x RS232

USB: 8x USB (6x USB3.2 GEN1x1 5Gbps, 2x USB 2.0)

Audio: 1x 3.5mm jack for Mic-In and Line-out

DIO: N//A

Storage: 2x M.2 2242 M key (SATA III SSD) , Support Raid 0/1 , (1x M.2 2242 share with M.2 3052)

Internal Expansion:

  • 1x M.2 2242/3052 M-B key with SIM slot, support 4G/5G
  • 1x Full Size Mini-PCIe with SIM slot, support 4G/5G
  • 1x M.2 Key E Type 2230 for WIFI/BT/GPS

MXM Expansion: Support TYPE A : 82 x 70 mm MXM GPU Module

Mechanical: Dimension: 203(W) x 125(D) x82.7(H) mm , Weight : 2 Kg , Mounting : Wall Mount / Stand Kit

Temperature:

  • Operating Temperature: -40°C ~ 70 °C (According to CPU & GPU) ,
  • Storage Temperature: -40°C to 85°C

Humidity:

  • Operating : 0~95%(non-condensing
  • Storage : 10~90%

Power:

  • 1x 3-pin pluggable terminal block for 6~48V DC Input
  • 200V/1ms Surge Protection, Reverse-Voltage, Over-Voltage, Under-Voltage, Over-Current Protection
  • 1x Power Button
  • 1x 4-pin pluggable terminal block for Ignition/Remote

Vibration / Shock:

  • Vibration test according to MIL-STD-810H, Method 514.8, Category 4
  • Shock test according to MIL-STD-810H, Method 516.8, Procedure I

EMC: CE/FCC Class A , according to EN 55032 & EN 55035 , E-Mark / EN50155 / EN45545-2 by request
