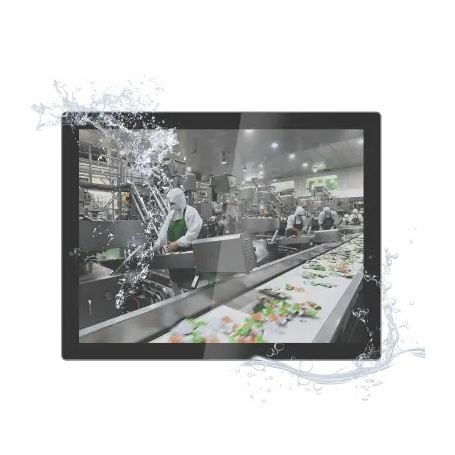

WPPC-H1520T(P)｜PC de panel industrial resistente al agua
PC de panel táctil capacitivo LCD XGA de 15" de acero inoxidable con procesador Intel® Twin Lake/Tiger Lake U
- Pantalla LCD TFT XGA de 15" con pantalla táctil capacitiva proyectada
- CPU Intel® Twin Lake/Tiger Lake U
- 1 SODIMM DDR4 de 3200 MHz, hasta 32 GB
- Construcción en acero inoxidable SUS304/SUS316 (opcional)
- Sistema completo con certificación IP66/IP69K y conectores M12
- 1 MiniPCIe, 1 M.2 B-Key tipo 3042/3052
- 1 COM, 2 LAN, 2 USB 2.0, 1 DIO de 8 bits (opcional)
- 1 M.2 2280 M-Key, 1 mSATA
- Fuente de alimentación de 9 a 36 V CC, diseño de refrigeración sin ventilador
- Orificios de montaje VESA y montaje en panel
El WPPC-H1520T(P) es un Panel PC industrial de acero inoxidable con diseño sin ventilador y pantalla LCD TFT XGA 4:3 de 15" con pantalla táctil capacitiva proyectada. Su carcasa de acero inoxidable SUS 304 con certificación IP66 e IP69K ofrece protección completa contra agua, polvo y suciedad, lo que lo hace ideal para el procesamiento de alimentos, la industria química, la industria ligera y entornos semiexteriores.
| ESPECIFICACIÓN | ||
| System | CPU | Intel® Processor N150/Core i3-1115G4 /i5-1135G7/i7-1165G7，ULT SoC, TDP 6W/28W |
| Chipset | Intel® CPU SoC MCP | |
| System memory | 1 *DDR5 4800 MHz SODIMM, up to 16GB (Intel® Twin Lake) 1 *DDR4 3200 MHz SODIMM, up to 32GB (Intel® Tiger Lake U) |
|
| BIOS | AMI UEFI BIOS | |
| Storage | 1 *M.2 2280 M-Key for SSD，1 *full size mSATA | |
| Graphics | Intel® Graphics (Intel® Twin Lake) Intel® Iris® Xe Graphics (Intel® Tiger Lake U) |
|
| Expansion | 1*Mini PCIe, 1*M.2 B-Key Type 3042/3052, 1*Mini-SIM | |
| Real I/O | 1 *M12 8-pin for 2 x USB2.0 1 *M12 8-pin for COM, RS-232/422/485, default RS-232 2 *M12 8-pin for 2 x 2.5GbE LAN 1 *M12 4-pin for DC power |
|
| Optional I/O | 1 *Optional M12 I/O blank via cable (2 *USB 2.0 ,1 *COM RS-232 or 1*8-bit DIO ) | |
| Others | 1 *Pressure Valve SUS304 VENT, 2 *WiFi Antenna (Optional) | |
| Control SW | 1 *Power On/Off, 1 *Touch ON/OFF Switch, 1*CMOS, 1*AT/ATX | |
| Power Supply | 9~36V DC Input | |
| OS | Windows 11*IoT Enterprise， Windows 10*IoT Enterprise，Linux，Ubuntu | |
| Mechanical & Environmental |
Construction | 304 Stainless steel chassis(default), 316 Stainless steel chassis(optional) |
| IP Level | Full System IP66/IP69K | |
| Operating Temperature | -20°C ~ 50°C (-4°F to +122°F) | |
| Storage Temperature | –30°C ~ 70℃ (-22°F to +158°F) | |
| Mechanical & Environmental |
Relative Humidity | 10% to 95% @ 40°C, Non-condensing |
| Shock | Operating 10G peak acceleration (11ms duration) | |
| Vibration | Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD | |
| Mounting | VESA Mounting Holes 100 x 100mm | |
| Dimension | (W*H*D): 343*54*267.6 mm | |
| Packing Dimensions | (W*H*D): 474*362*215 mm | |
| Net Weight | 4.7KG | |
| EMC | CE,FCC Class A | |
| LCD | Type | 15'' TFT (LED Backlight) |
| Resolution | 1024*768 @60Hz | |
| Color | 16.2M | |
| Pixel Pitch(mm) | 0.297（H)×0.297（V) | |
| Brightness(cd/m2) | 400 | |
| Viewing Angle | 80° (left), 80°(right), 80°(up), 80°(down) | |
| Operating Temperature | -20~70℃ | |
| Backlight Lifetime | 50000 hrs | |
| Touch | Type | Projected capacitive multi-touch |
| Light Transmittance | 90% | |
| Interface | USB | |
| Impact absorption | IK07 | |
| Click Lifetime | 3 billion times | |
| Ordering Info | |||
| Model NO. | CPU | TOUCH | Description |
| WPPC-H1520T(P)/N150 | Intel® Processor N150 | Projected capacitive multi-touch | 15'' XGA Stainless Steel Panel PC, 1*COM，2*LAN, 2*USB2.0, 1*Optional M12 I/O blank（2*USB/1*COM/DIO), 1*Mini PCIe, 1*mSATA, 1 *M.2 2280 M-Key, 1*M.2 B-Key, DC 9~36V |
| WPPC-H1520T(P)/I3 | Intel® Core i3-1115G4 | ||
| WPPC-H1520T(P)/I5 | Intel® Core i5-1135G7 | ||
| WPPC-H1520T(P)/I7 | Intel® Core i7-1165G7 | ||
| M12-PWR-DC12 | AC/DC power adapter, DC12V@5A ,60W 180CM | ||
| M12-USB180A | USB cable M12-8P-F/2*A type 180CM | ||
| M12-LAN180R | LAN cable M12-8P-F/RJ-45 plug CAT6 180CM | ||
| M12-COM180D | RS-232 cable M12-8P-F to DSUB 9M 180CM | ||
