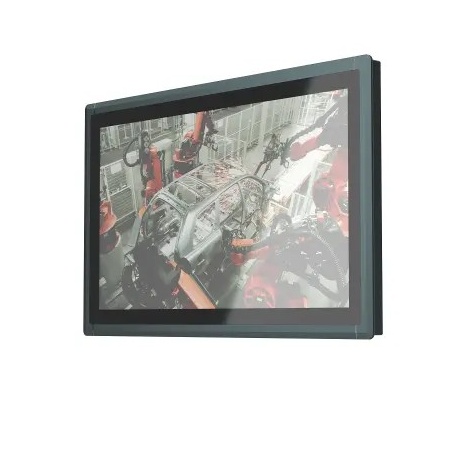

ALAD-K2150T(P) | Panel PC industrial

ALAD-K2150T(P) | Panel PC industrial

21.5'' TFT LCD Capactive Touch, Intel® Tigerlake CPU, 4*COM, 2*LAN, 4*USB3.2, 1* Line out，1*2.5“ SATA bay, 1*mSATA, DC 9~36V

- Aluminum die–casting chassis

- 21.5''TFT LCD, Multi-point capacitive touch

- Intel® Tigerlake CPU, fanless design

- 1*DDR4 3200 SODIMM, up to 32GB

- 1*Mini PCIe, 1*M.2 B-Key Type 3042/3052

- 4*COM, 2*LAN, 4*USB3.2, 1*8-bit DIO (opt.)

- 2.5”SATA Bay, 1*mSATA, 1*Line out, 2*3W Speaker

- Optional 1*PCIeX4 slot (PCIEX4 signal) or 1*PCI slot

- DC 9~36V power input

- Standard VESA mount and panel mounting

0,00 €
Impuestos incluidos

ALAD-K2150T(P) es una tableta equipada con procesadores de la serie Intel® Tiger lake U. Adopta una pantalla LCD TFT de 21,5" con una resolución de 1920*1080 y una pantalla táctil capacitiva multipunto de proyección de superficie que se adapta completamente. El producto tiene una interfaz de E/S integral, compatible con 1 disco SATA de 2,5" y 1 almacenamiento dual mSATA; 1 expansión Mini PCIe y 1 expansión M.2 3042/3052 integradas, fuente de alimentación de CC de amplio voltaje de 9 a 36 V, cuerpo de aluminio fundido a presión sin disipación de calor del ventilador, varios modos de instalación, adecuado para sistemas MES inteligentes y HMI de gestión de dispositivos.

ESPECIFICACIONES

System CPU Intel® Tigerlake U  Celeron/Core I3/I5/I7 CPU，ULT SoC, TDP 12W/15W
Chipset Intel® CPU SoC MCP
System memory 1*DDR4 3200 MHz SODIMM, up to 32GB
BIOS AMI EFI BIOS, 128Mbit SPI flash memory
Storage 1*2.5'' SATA HDD bay, support SATA3.0 6Gbps HDD/SSD; 1*mSATA
Display 21.5 "1920*1080@60Hz TFT LCD, 1*HDMI for extended display
Intel UHD Graphics or iRIS® Xᵉ Graphics, Supports Intel DL boost deep learning to strengthen technology,
DirectX12.1, OpenGL 4.6 and OpenCL 3.0, HDMI Max resolution 4096*2304@60Hz
Expansion 1*Mini PCIe (PCIe&USB signal), supports a functional module with PCIe or USB signals
1*M.2 B-Key Type 3042/3052 with SIM card slot, supports 4G LTE/5G NR
Optional a PCIeX 4 slot (X4 signal) or a 32-bit PCI slot extension
Audio Realtek ALC897 controller, support 5.1 channel, 2*3W Speaker
Real I/O 4*COM: 2*RS232/422/485, 2*RS232, DB9; 1*HDMI; 1*Line out; 4*USB3.2 Type A ; 2*RJ45;
1*3 pin DC-IN terminal pin; 1*Remote SW; 1*PCIeX4 or 1*PCI slot is optional with COM3&COM4
Front I/O /
LAN 2*Intel I226V PCIe Gig. Ethernet, 10/100/1000Mbps, support WOL
Control SW/LED Power LED, 1*CMOS, 1*AT/ATX,  2-pin terminal remote switch
Power Supply DC to DC: 9~36V input, consumption: 11.52W (CPU  i7-1165G7, 8G DDR4, 128G SSD)
OS Windows 11*IoT enterprise， Windows 10*IoT enterprise，Android，SUSE，Ubuntu，
Wind River，Red Hat*Enterprise，Wind River VxWorks*7，Yocto
Construction Aluminum die–casting front bezel , fin–shaped radiator shell
Mechanical
&
Environmenal		 Operating  Temperature 0~50℃ –HDD( –10~55℃ –SSD), with airflow
Storage Temperature –20~60℃
Storage Humidty 10~95%@40 , non–condensing
Shock 10G  peak acceleration(duration 11ms), in operating with HDD
Vibration 1G 5~500Hz,  in operating with HDD
Mounting Panel mounting, VESA 75*75mm and 100*100mm
Dimension (W*H*D):546.9*344.7*64.1mm; mounting cut out(W*H): 537.5*335.3mm
Net Weight 8.15KG
EMC CE,FCC Class A
LCD Type 21.5'' TFT LED backlight
Resolution 1920*1080@60Hz
Color 16.7M
Pixel Pitch(mm) 0.248*0.248(mm)
Brightness(cd/m2) 300
Viewing Angle 89°(left), 89°(right), 89°(up),89°(down)
Operating Temperature 0~50℃
Backlight Lifetime 50000 Hours
Touch Type Projected capacitive touch
Resolution gapless
Light Transmittance 90%
Interface USB
Consumption +5V @300mA
OS Windows/Linux
Click Lifetime 3 billion times
