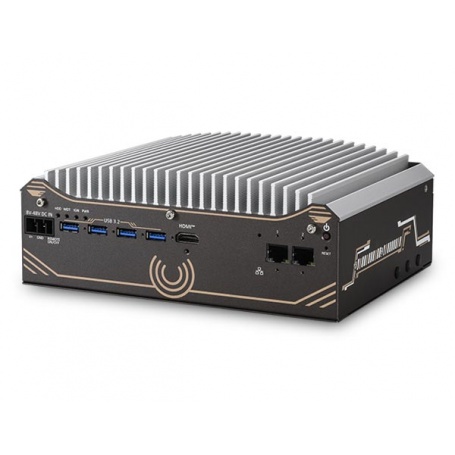

Nuvo-11501 / Intel® Core™ Ultra 200S Compact Fanless Computer with 2x 2.5GbE, 4x USB 3.2
Intel® Core™ Ultra 200S Compact Fanless Computer with 2x 2.5GbE, 4x USB 3.2
- Supports Intel® Core™ Ultra 200S series 35W/ 65W LGA1851 CPU
- Compact 212 x 165 x 80 mm footprint
- Rugged, -10°C to 60°C fanless operation
- Up to 64GB DDR5 6400 memory
- 8V to 48V wide-range DC input
- 2x 2.5GbE and 4x USB3.2 Gen1 with screw-lock
- Supports 1x M.2 2280 Gen4x4 NVMe and 1x 3.5"/2.5" SATA HDD/SSD storage
- HDMI + DP dual display outputs
The Nuvo-11501 is a cost-effective, compact, fanless embedded AI computer powered by an Intel® Core™ Ultra 200S series processor. It is an ideal solution for machine vision or factory automation applications that demand cutting-edge CPU performance, cost efficiency, minimal I/O, and flexible storage options.
Powered by the latest Core™ Ultra 200S processors, the Nuvo-11501 delivers nearly 120% of the performance while consuming only 80% of the power compared to the previous generation, thanks to TSMC's advanced 3nm process technology. In addition to its superior CPU performance, the Core™ Ultra 200S series also features an integrated Neural Processing Unit (NPU), providing enhanced AI inference capabilities alongside rule-based algorithms to meet the demands of modern machine vision applications.
The Nuvo-11501 offers essential I/O functions for industrial application needs, including dual 2.5GbE ports, dual display ports, and four USB 3.2 ports. Additionally, it features a Gen4 x4 M.2 NVMe slot for high-speed OS read/write operations, along with an internal 2.5"/3.5" SSD/HDD bay for high-capacity storage—ideal for data logging or video recording. For internal expansion, it provides two mPCIe slots and one M.2 E-Key slot for adding COM ports, Wi-Fi, or 5G/ 4G LTE connectivity.
Combining a proven thermal design with essential I/O functionality, the Nuvo-11501 delivers a rugged, compact, and budget-friendly computing solution tailored for a wide range of industrial applications.
| System Core | |
|---|---|
| Processor | Supports Intel® Core™ Ultra 200S series CPU (LGA 1851 socket), 35W and 65W TDP - Intel® Core™ Ultra 9 285/285T - Intel® Core™ Ultra 7 265/265T - Intel® Core™ Ultra 5 245/245T |
| Chipset | Intel® H810 platform controller hub |
| Graphics | Integrated Intel Xe LPG Graphics |
| AI Engine | Integrated neural processing unit |
| Memory | Up to 64GB DDR5 6400 memory via one SODIMM slot |
| TPM | fTPM 2.0 (standard) / dTPM 2.0 (optional) |
| I/O Interface | |
| Ethernet | 2x 2.5GBASE-T Ethernet ports with screw-lock by Intel® I226-V GbE controllers Port 2 supports Wake-on-LAN (WOL) |
| USB | 4x USB 3.2 Gen1 (5 Gbps) ports with screw-lock 2x USB 2.0 ports |
| Video Port (Integrated Graphics) |
1x HDMI, supporting 3840 x 2160 resolution 1x DisplayPort, supporting 3840 x 2160 resolution (The DisplayPort does not support DP++. Use an active DP-to-HDMI adapter for HDMI output.) |
| Serial Port | 1x software-programmable RS-232/422/485 ports (COM1) 3x 3-wire RS-232 ports (COM2/ 3/ 4) or 1x RS-422/ 485 port (COM2) |
| Internal Expansion Bus | |
| Mini PCI Express | 2x full-size mini PCI Express sockets with internal SIM sockets |
| M.2 E | 1x M.2 2230 E key socket for WiFi module |
| Storage Interface | |
|---|---|
| SATA HDD | 1x Internal SATA port for 1x 3.5" HDD or 1x 2.5" HDD/ SSD |
| M.2 M | 1x M.2 2280 M key socket (PCIe Gen4x4) for NVMe SSD |
| Power Supply | |
| DC Input | 1x 3-pin pluggable terminal block for 8V to 48V DC input with with remote on/off control [1] |
| Mechanical | |
| Dimension | 212 mm (W) x 165 mm (D) x 80 mm (H) |
| Weight | 2.5 kg (excluding wall mount kit) |
| Mounting | Wall-mount (optional) or DIN-rail mount (optional) |
| Environmental | |
| Operating Temperature |
With 35W CPU -10°C to 60°C [2] With 65W CPU (installation of the optional fan kit isvrecommended) -10°C to 60°C [2]/[3] |
| Storage Temperature |
-40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | MIL-STD-810H, Method 514.8, Category 4 |
| Shock | MIL-STD-810H, Method 516.8, Procedure I |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 |
[1] The maximum input current for each pin is 20A
[2] For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
[3] For 65W CPUs, the optional fan kit is recommended for operating at ambient temperatures higher than 50°C.
Ordering Information
Nuvo-11501
Intel® Core™ Ultra 200S compact fanless computer featuring 2x 2.5GbE, 4x USB 3.2
Optional Accessories
DINRAIL-31
DIN-rail mounting assembly for Nuvo-11501 and Nuvo-9501 series
Wmkit-H-Nuvo9501
Wall mount assembly for Nuvo-11501 and Nuvo-9501 series
AccsyBx-FAN-Nuvo11531_11501
Fan kit with 92mm x 92mm fan for Nuvo-11588/ Nuvo-11531/ Nuvo-11501 series
PA-160W-OW 160W
AC-DC power adapter 20V/8A; 18AWG/120cm; cord end terminals for terminal block, operating temperature: -30°C to 70°C.
PA-280W-ET2
280W AC/DC power adapter 24V/ 11.67A ; 16AWG/ 100cm; cord end terminals for terminal block, operating temperature : -30°C to 60°C.(recommended for 65W CPU)
