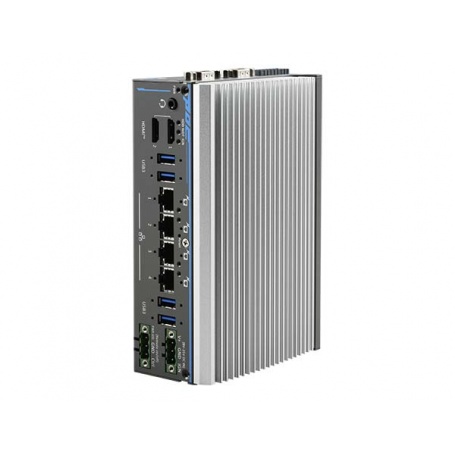

POC-900 Series / AMD® Ryzen™ PRO 8640U Ultra-compact Embedded Computer with 4x PoE+, 4x USB 3.2 and MezIO® Interface
AMD® Ryzen™ PRO 8640U Ultra-compact Embedded Computer with 4x PoE+, 4x USB 3.2 and MezIO® Interface
- AMD® Ryzen™ PRO 8640U processor 15W-30W TDP with 6C/ 12T
- 16 TOPs NPU with Ryzen™ AI, 31 TOPs for total SoC
- Up to 32 GB ECC/ non-ECC DDR5 5600 SDRAM
- 4x PoE+ GbE & 4x USB 3.2 Gen 2 with screw-lock
- Dual HDMI™ 2.0b display output, Supporting 3840 x 2160 at 60Hz
- Front I/O access and DIN-rail mounting design
- -25°C to 70°C wide temperature operation
- MezIO® interface for easy function expansion
The POC-900 series is the latest addition to Neousys' compact POC family, powered by the AMD® Ryzen™ embedded 8000 series platform. By retaining the same footprint, dimensions and DIN-rail mounting design as the current POC-700 and POC-500 series, the POC-900 ensures compatibility with existing installations while offering significant performance and connectivity upgrades.
Featuring the AMD® Ryzen™ PRO 8640U processor, the POC-900 offers up to 270% performance improvement over POC-500 platforms. In addition, its storage and memory have been enhanced, with support for M2 Gen 4x4 NVMe SSD and DDR5-5600 memory, they enable faster data access and improved system responsiveness for demanding edge AI and industrial applications.
The POC-900 provides four Gigabit Ethernet ports with PoE+, four USB 3.2 ports, and four digital inputs and outputs (DI/ DO) for connectivity with cameras, sensors, and control systems. In addition, it supports Neousys' MezIO® interface, allowing flexible I/O expansion to meet specific application requirements. Combining next-generation AMD® performance with compact, rugged reliability, the POC-900 is engineered to deliver exceptional computing power and versatility for industrial automation, edge AI, and machine vision deployments.
| System Core | |
|---|---|
| Processor | AMD® Ryzen™ PRO 8640U CPU (6C/ 12T, 3.5/ 4.9 GHz, 15W-30W TDP) |
| Graphics | AMD® Radeon RDNA3 Graphics |
| Memory | Up to 32 GB DDR5-5600 SDRAM (one SODIMM socket) |
| TPM | Supports dTPM 2.0 |
| I/O Interface | |
| Ethernet | 4x Gb Ethernet ports by Intel® I350-AM4 (with WoL) |
| PoE+ | IEEE 802.3at PoE+ on port #1~ 4 - 32W power budget (with UL certified) - 100W power budget (maximum) |
| USB | 4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors with screw-lock |
| Video Port | 2x HDMI2.0b, Supporting 3840 x 2160 at 60Hz |
| Serial Port | 1x Software-programmable RS-232/422/485 ports (COM1) 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2) |
| Isolated DIO | 4-CH isolated DI and 4-CH isolated DO |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Storage Interface | |
| M.2 M key | 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD |
| Expansion Bus | |
| Mini PCI-E | 1x full-size mini PCI Express socket (PCIe + USB2) with internal micro SIM socket |
| Expandable I/O | 1x MezIO® expansion interface for Neousys MezIO® modules |
| Power Supply | |
|---|---|
| DC Input | 1x 3-pin pluggable terminal block for 8 to 35V DC input |
| Remote Ctrl.& LED Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Mechanical | |
| Dimension | 64mm (W) x 116mm (D) x 176mm (H) 92mm (W) x 118mm (D) x 176mm (H) (with fan) |
| Weight | 1.2 kg (fanless) or 1.4 kg (with fan) |
| Mounting | DIN-rail mount (standard) or wall-mount (optional) |
| Environmental | |
| Operating Temperature | -25°C ~ 70°C (15W TDP, fanless) -25°C ~ 45°C (30W TDP, fanless) -25°C ~ 70°C (30W TDP, with fan) |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | MIL-STD-810H, Method 514.8, Category 4 (with wall-mount) |
| Shock | MIL-STD-810H, Method 516.8, Procedure I (with wall-mount) |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 |
| Safety | UL 62368-1, IEC 62368-1 |
Ordering Information
POC-915
AMD® Ryzen™ PRO 8640U Ultra-compact Embedded Computer with 4x PoE+, 4x USB 3.2 and MezIO® Interface
Supported MezIO® Modules
Neousys MezIO® module offers computer signals, power rails and control signals via a high-speed connector. It transforms Neousys embedded systems into application-specific systems with application-oriented I/Os such as RS-232/422/485, isolated DIO and ignition power control.
(Click here for details of compatible MezIO® modules)
Optional Accessories
PA-120W-OW
120W AC/ DC power adapter with 12V, 10A DC output, cord end terminals for terminal block. Operating temperature: -30°C to 60°C
PA-160W-OW
160W AC-DC power adapter, 20V/8A; 18AWG/120cm; cord end terminals for terminal block. Operating temperature : -30°C to 70°C
Cbl-DB9F-3DB9M-15CM
DB9 (Female) to 3x DB9 (Male), length: 15CM for COM2/3/4
Wmkit-H-POC500
Wall-mount assembly for POC-500/700/900 series, horizontal type
Wmkit-V-POC500
Wall-mount assembly for POC-500/700/900 series, vertical type
AccsyBx-FAN-POC-900
Fan assembly for POC-900 series, 92x92x25 mm
