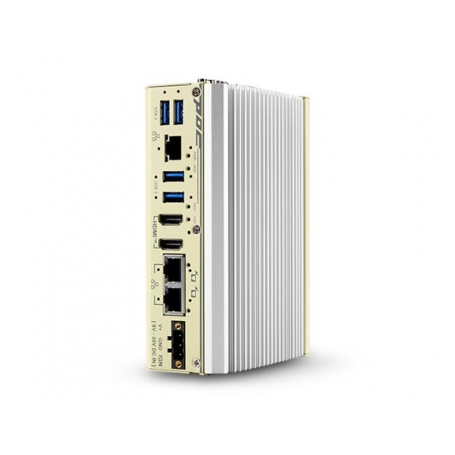

POC-600 Series / Intel® Atom® x7425E Ultra-Compact Fanless Embedded Computer with 3x 2.5GbE & PoE
Intel® Atom® x7425E Ultra-Compact Fanless Embedded Computer with 3x 2.5GbE & PoE+
- Intel® Atom® x7425E processor 12W with 4 E-Cores
- Rugged -25 °C to 70 °C fanless operation
- Up to 16GB DDR5-4800 SODIMM
- 2x 2.5GbE PoE+ ports and 1x 2.5GbE port with screw-lock
- 4x USB 3.2 with screw-lock
- Dual HDMI™ display outputs supporting 3840 x 2160 resolution
- Front I/O access and DIN-rail mounting design
- 8 to 35V wide DC input and MezIO® compatible
POC-600 is Neousys' new ultra-compact fanless embedded computer based on Intel® Atom® x7425E processor. With four efficient cores operating at only 12W TDP and support for up to 16 GB DDR5 memory, it delivers up to 1.5x CPU performance improvement and higher memory bandwidth compared to previous Atom® platforms, making it a reliable solution for next-generation industrial edge deployments.
Despite its small form factor, POC-600 delivers comprehensive connectivity. It integrates three 2.5GbE ports powered by Intel® I226-IT controllers, with an option for two PoE+ ports to power cameras or sensors. The system also provides dual HDMI™ 1.4b outputs supporting 3840 x 2160 resolution, four screw-lock USB3.2 ports for reliable high-speed connections, as well as versatile serial communication with one software-programmable RS-232/ 422/ 485 and additional RS-232 or RS-422/ 485 ports. For storage, POC-600 supports one M.2 2280 SATA device and Neousys' proprietary MezIO® interface for adding application-specific functions such as isolated DIO, ignition control, or wireless modules.
With its balance of performance, low power consumption, and robust I/O capabilities, POC-600 is designed for a wide range of industrial applications. It is ideal for machine vision systems requiring multiple high-speed camera connections and smart transportation that demands reliable PoE+ networking. Sharing the same compact footprint as POC-400 and POC-300, POC-600 allows seamless system upgrades and supports DIN-rail mounting for easy and secure installation in industrial control cabinets or confined spaces, enabling next-generation industrial automation and intelligent edge solutions.
| System Core | |
|---|---|
| Processor | Intel® Atom® x7425E processor 12W with 4 E-Cores (4C/4T, 1.5 /3.4GHz, 12W TDP) |
| Graphics | Integrated Intel® UHD Graphics with 24EUs |
| Memory | Up to 16 GB DDR5-4800 SDRAM (one SODIMM socket) |
| TPM | Supports dTPM 2.0 |
| I/O Interface | |
| Ethernet | 3x 2.5Gb Ethernet ports by Intel® I226-IT GbE controllers |
| PoE+ | IEEE 802.3at PoE+ on port #2 and #3, 50 W total power budget (Only for POC-600) |
| Native Video Port | 2x HDMI™ 1.4b, Supporting 3840 x 2160 |
| Serial Port | 1x Software-programmable RS-232/422/485 ports (COM1) 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2) |
| USB | 2x USB 3.2 Gen1 with screw-lock 2x USB 3.2 Gen2 with screw-locK |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Storage Interface | |
| M.2 M key | 1x M.2 2280 SATA interface |
| Expansion Bus | |
| Expandable I/O | 1x MezIO® expansion interface for Neousys MezIO® modules |
| Power Supply | |
|---|---|
| DC Input | 1x 3-pin pluggable terminal block for 8 to 35V DC input |
| Remote Ctrl.& LED Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Mechanical | |
| Dimension | 56 mm (W) x 108 mm (D) x 153 mm (H) |
| Weight | 0.98kg |
| Mounting | DIN-rail mount (Standard) or Wall-mount (Optional) |
| Environmental | |
| Operating Temperature | -25°C ~ 70°C |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | MIL-STD-810H, Method 514.6, Category 4 |
| Shock | MIL-STD-810H, Method 516.6, Procedure I |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 |
Ordering Information
POC-600
Intel® Atom® x7425E ultra-compact DIN-rail fanless rugged computer with 1x 2.5GbE, 2x 2.5G PoE+ and 4x USB 3.2
POC-610
Intel® Atom® x7425E ultra-compact DIN-rail fanless rugged computer with 3x 2.5GbE and 4x USB 3.2
Supported MezIO® Modules
Neousys MezIO® module offers computer signals, power rails and control signals via a high-speed connector. It transforms Neousys embedded systems into application-specific systems with application-oriented I/Os such as RS-232/422/485, isolated DIO and ignition power control.
(Click here for details of compatible MezIO® modules)
Optional Accessories
PA-60W-OW
60W AC/DC power adapter with 12V, 5A DC output, cord end terminals for terminal block. Operating temperature : -30 to 60 °C
PA-120W-OW
120W AC/DC power adapter with 20V, 6A DC output, cord end terminals for terminal block. Operating temperature : -30 to 70°C
Wmkit-V-POC300_400
Wall mounting assembly for POC-300, POC-400, POC-40, POC-600 series, vertical type
Wmkit-H-POC300_400
Wall mounting assembly for POC-300, POC-400, POC-600 series, horizontal type
Cbl-DB9F-3DB9M-15CM
1x DB9 (Female) to 3x DB9 (Male), length: 15CM
