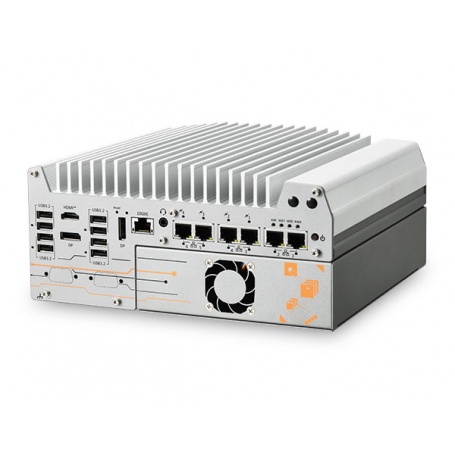

Nuvo-11160GC Series Ruggedized Edge AI Platform Supporting 150W GPU and Intel® Core™ Ultra 200S Series Processor
- Supports Intel® Core™ Ultra 200 Series 24C/24T 35W/65W LGA1851 CPU
- Supports NVIDIA® RTX series GPU card up to 150W
- Rugged, -25°C to 60°C wide temperature operation
- 5x 2.5GbE and 1x GbE ports with optional PoE+ (ports 3~6)
- 1x optional 10GBASE-T Ethernet
- 8x USB 3.2 Gen2 Type-A ports
- 4-CH isolated DI and 4-CH isolated DO
- MezIO® interface for easy function expansion
The Nuvo-11160GC is Neousys's latest rugged, wide-temperature edge AI platform built on the Intel® Core™ Ultra 200S series processor with support for NVIDIA® RTX™ GPU cards up to 150W. With high-performance density and comprehensive I/O connectivity, it is ideal for demanding edge AI applications across both fixed and mobile deployments in indoor and outdoor environments, such as AI-driven vision inspection, video analysis and autonomous mobile robots.
Designed for demanding real-world applications, the Nuvo-11160GC simplifies the connection of required sensors and control devices with extensive I/O connectivity, while its compact form factor enables deployment in space-constrained environments. For stationary use cases such as vision-based robotic guidance, AI-driven vision inspection, and video analysis, it offers 8x USB 3.2 Gen 2 ports and 6x GbE ports for multi-camera setups, 4-CH isolated DI and 4-CH isolated DO for factory automation integration, and an optional 10GbE port for high-bandwidth communication. For greater I/O and functionality, the patented MezIO® interface enables flexible expansion: the MezIO®-U4 adds 4 additional USB 3.1 ports, the MezIO®-G4 adds 4 additional GbE ports, and the MezIO®-D330 adds 16-CH DIO.
For more demanding mobile robots applications such as AMRs and outdoor delivery robots, the optional built-in PoE+ capability simplifies GigE camera deployment, while mini PCIe slots support 4G/5G module expansion for remote operation. A proven thermal design, featuring the patented segregated cassette design with an upgraded GPU cooling fan, ensures reliable performance across a wide temperature range of -25°C to 60°C, making it well-suited for outdoor environments. On the power efficiency side, the Intel® Core™ Ultra 200S delivers 1.2x higher CPU performance while consuming only 80% of the power compared to the previous generation, enabling longer battery endurance for mobile robotics.
By integrating the latest Intel® Core™ Ultra 200S platform with up to 150W Blackwell GPU support, a rugged wide-temperature design, and flexible I/O expansion within a compact footprint, the Nuvo-11160GC is an ideal edge AI platform for both stationary and mobile applications.
| Core | |
|---|---|
| Processor | Supports Intel® Core™ Ultra 200 series CPU (LGA 1851 socket), 35W and 65W TDP - Intel® Core™ Ultra 9 285/285T - Intel® Core™ Ultra 7 265/265T - Intel® Core™ Ultra 5 245/245T |
| Chipset | Intel® Q870E Platform Controller Hub |
| Graphics | Integrated Intel Xe LPG Graphics |
| AI Engine | Integrated Neural Processing Unit |
| Memory | Up to 128 GB DDR5 6400 SDRAM (two SODIMM slots) |
| AMT | Supports Intel vPro/ AMT 16.0 |
| TPM | Supports dTPM 2.0 |
| I/O Interface | |
| Ethernet | 5x 2.5G Ethernet by I226-IT and 1x 1G Ethernet by I219-LM with screw-lock 1x optional 10GBASE-T Ethernet |
| PoE+ | Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6. 100W total power budget |
| USB 3.2 | 8 x USB 3.2 Gen2 ports |
| Isolated DIO | 4-CH isolated DI and 4-CH isolated DO |
| Video Port (Integrated Graphics) |
1x HDMI™, supporting 3840 x 2160 resolution 2x DisplayPort, supporting 4096 x 2304 resolution |
| Serial Port | 2x software-programmable RS-232/ 422/ 485 ports (COM1/COM2) 2x 3-wire RS-232 ports (COM3/COM4) |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Storage Interface | |
| SATA HDD | 2x internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/1 |
| M.2 | 1x M.2 2280 M key NVMe socket (PCIe Gen5x4) for NVMe SSD |
| Expansion Bus | |
| PCI Express | 1x PCIe x16 slot@Gen4, 16-lanes PCIe signal in Cassette for installing NVIDIA® GPU up to 150W (Max. graphics card dimension is 178 mm(L) x 128 mm(W), dual slot allocation) |
| Mini-PCI Express | 2x full-size mini PCI Express socket |
| Expandable I/O | 1x MezIO® expansion port for Neousys MezIO® modules |
| USB2.0 | 1x USB 2.0 port with Type-A connector (internal) |
